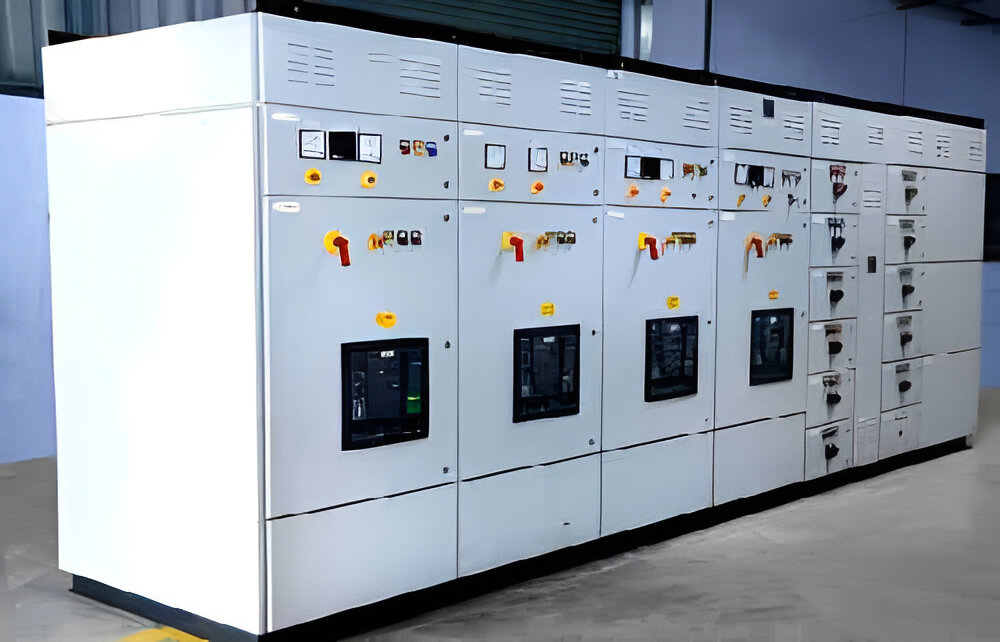

Power Control Center Panels
These Power Control Center (PCC) panels are suitable for attainment of maximum and efficient power utilization. They are ergonomically designed and have Main Panels that are either of draw out or non draw out type and also cubical panels depending on the type of application and the customized specific requirements.
The Power Control Center has a compartmentalized board with a current conveying limit up to 6300Amp. The Power Control Center is a typical control board with various vertical segments from where the different electric boundaries are checked and controlled. This scope of Force Control Focuses is extremely powerful in taking care of exceptionally high current at low voltage.
PCC Panel Construction Details
- Modular / Non- compartmentalized construction.
- Indoor / Outdoor type Structure.
- Provision for Extensible for future use.
PCC Panel Pre Treatment And Painting
- Three Tank / Seven Tank Pre treatment process
- Final paint shade as per IS or client specifications
- Synthetic Enamel / Epoxy based primer / Powder coating as per customer’s requirement
PCC Panel Bus Bar Arrangement & Cable Alley
- Electrical Grade Aluminum / Copper Busbar
- Main busbar chamber at top / bottom of the Panel
- Busbar supports of SMC/DMC Material
